| LED | System status LED on the rear |
| IPv6 | Support |
| Mesh | Support |
| Port | 4 × 10/100/1000BASE-T Ethernet ports |
| Antenna | 4 × external 5 dBi omnidirectional antennas |
| Cooling | Passive cooling CE |
| MU-MIMO | Upstream and downstream MU-MIMO |
| Security | WPA3, anti-piggybacking, firewall, DMZ |
| Wireless | 2.4GHz: 802.11n/g/b |
| Certification | WEEE RoHS |
| Wireless rate | Simultaneous dual-band: 1501 Mbps, including 300 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band. |
| Spatial streams | 5GHz 2×2 MIMO 2.4G HT20/HT40 |
| Special features | QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client) |
| Wireless roaming | IEEE 802.11k/v |
| Management method | H3C Magic APP management (iOS, Android), Web management |
| Power consumption | ≤ 12 W |
| Wireless protocol | 5GHz: 802.11ax/ac/n/a 2.4GHz 2×2 MIMO |
| Network management | Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off |
| Wireless bandwidth | 5G HT20/HT40/HT80 |
| Internet connection | Routing mode: DHCP/PPPoE/static IP Bridge mode: Wired repeating/wireless repeating |
| Dimensions (H × W × D) | 180 × 195 × 57.3 mm (7.09 × 7.68 × 2.26 in) |

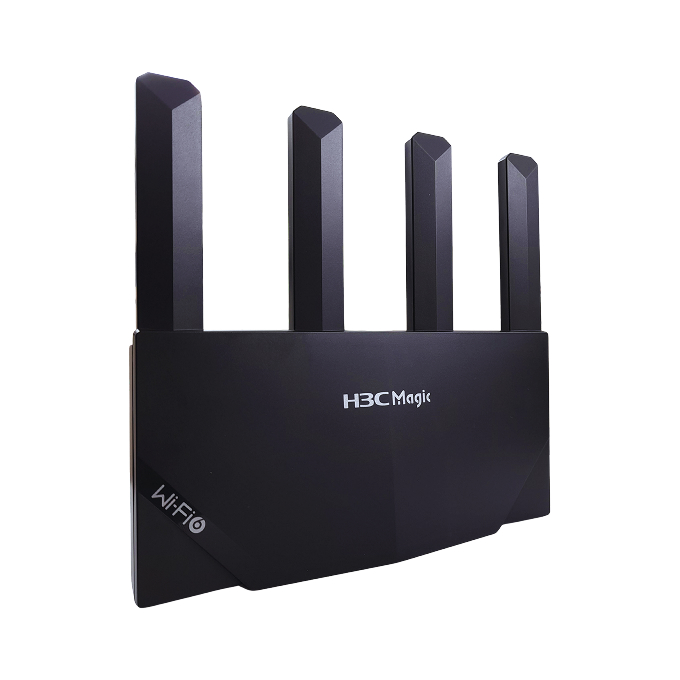

H3C Magic NX15 is a new Gigabit Wi-Fi 6 router that provides the best price-performance ratio for customers. Using the Wi-Fi 6 (802.11ax) technology on the 5GHz band, it provides a wireless rate up to 1501 Mbps. Four high-gain external antennas and mesh setup ensure wide and flexible network signal coverage. With WPA3, the router makes your network more secure. As a new Wi-Fi 6 router, H3C Magic NX15 lets you enjoy best and quick online experience with optimal cost efficiency.
